The Deenik rail clip, shaped like the letter "D," is also known as the Deenic Elastic Rail Tension Clamp and is used to securely fasten rails to sleepers. GNEE rail is a reliable and professional rail clips supplier, we specialize in manufacturing various elastic rail clips for securing rails on wooden, steel, and concrete sleepers, including Fast Clips, E-Clips, E2009, E1809, E2005, E2055, E2003, SKL12, SKL14, Deenik Clips, Nabla Clips, Fist Clips, and more. Different types of rail clips are available to suit various sleeper types and track fixing needs. Customization is available-feel free to contact us!
Deenik Railway Clips specification
Model: Deenik Railway Clip
Types: Square & Round profile
Material: 60Si2MnA, 55Si7, 38Si7,
Diameter: Ø16-Ø25
Weight: 0.49-0.68
Surface treatment: black, galvanized, galvanized, plain, dacromet.
Packing: woven bag with free fumigation wooden pallet
Deenik Railway Clips technical parameters
| Model | Diameter | Weight | Material |
| Type III | Ø 18 | 0.80kg/pc | 60Si2MnA |
| E1609 | Ø 16 | 0.43kg/pc | 60Si2MnA |
| E1809 | Ø 20 | 0.61kg/pc | 60Si2MnA |
| E1813 | Ø 18 | 0.62kg/pc | 60Si2MnA |
| E2001 | Ø 20 | 0.80kg/pc | 60Si2MnA |
| E2007 | Ø 20 | 0.80kg/pc | 60Si2MnA |
| E2009 | Ø 20 | 0.80kg/pc | 60Si2MnA |
| E2039 | Ø 20 | 0.80kg/pc | 60Si2MnA |
| E2055 | Ø 20 | 0.80kg/pc | 60Si2MnA |
| E2056 | Ø 20 | 0.80kg/pc | 60Si2MnA |
| E2063 | Ø 20 | 0.80kg/pc | 60Si2MnA |
| SKL 1 | Ø 13 | 0.48kg/pc | 60Si2CrA |
| SKL 3 | Ø 13 | 0.48kg/pc | 60Si2CrA |
| SKL 12 | Ø 13 | 0.53kg/pc | 38Si7 |
| SKL 14 | Ø 13 | 0.53kg/pc | 60Si2MnA |
| Special Rail Clip | Ø 13 | 0.48kg/pc | 60Si2MnA |
| Russia Rail Clip | Ø 18 | 0.58kg/pc | 60Si2MnA |
| Deenik Clip | Ø 25 | 0.49-0.68kg/pc | 60Si2MnA |
| Single Anti-theft | Ø 20 | 0.25kg/pc | 60Si2MnA |
Deenik Railway Clips workshop
Customer visit for Rail Clips
Participating in the Indonesian exhibition
|
|

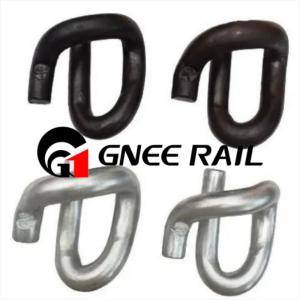

Choose Deenik Railway Clips for High-Performance Rail Fastening on Wooden Steel and Concrete Sleepers Images
|
