Top UIC Railway Fish Plate Manufacturer-GNEE
UIC railway fish plates are the fish plates that are up to the standard of International Union of Railways. Brelow is the technical data of UIC railway fish plate:
- Standard: UIC864-4 & UIC864-8
- Material: Chinese steel grade 40#
- Size: U79 – UIC54, U85 – UIC60
- Tensile strength Rm: 550-650 Mpa
- Elongation A : ≥18%
Specification
UIC Standard Rail Fish Plate
Material: Q235B, 55#
| Q235B |
Mechanical Property |
Chemical Composition |
| Yield strength |
Tensile strength |
Elongation |
Hardness |
C |
Si |
Mn |
S |
P |
Cr |
Ni |
Cu |
| MPa |
kg/mm² |
MPa |
kg/mm² |
min |
HB |
≤ |
≤ |
≤ |
≤ |
≤ |
| ≥235 |
|
360~510 |
|
18 |
|
≤0.17 |
≤0.35 |
≤0.65 |
0.030 |
0.030 |
0.25 |
0.25 |
0.25 |
| 55# |
Mechanical Property |
Chemical Composition |
| Yield strength |
Tensile strength |
Elongation |
Hardness |
C |
Si |
Mn |
S |
P |
Cr |
Ni |
Cu |
| MPa |
kg/mm² |
MPa |
kg/mm² |
min |
HB |
≤ |
≤ |
≤ |
≤ |
≤ |
| ≥380 |
≥39 |
≥645 |
≥66 |
13 |
|
0.52-0.60 |
0.17-0.37 |
0.50-0.80 |
0.030 |
0.030 |
0.25 |
0.25 |
0.25 |
| UIC Standard Rail Fish Plate |
Rails |
| Fish Plate Model |
Weight Kg/m |
Size(mm) |
Material |
Rail Model |
Rail Weight Kg/m |
Standard |
| a |
b |
c |
x |
| y |
| U75 |
21.585 |
102.1 |
26 |
36 |
2.75 |
Grade 700 |
UIC50 |
50.46 |
UIC |
| 2.75 |
| U79 |
23.92 |
108.3 |
28 |
40 |
2.75 |
Grade 700 |
UIC54 |
54.43 |
UIC |
| 2.75 |
| U85 |
29.68 |
120.92 |
24 |
45 |
2.75 |
Grade 700 |
UIC60 |
60.34 |
UIC |
| 2.75 |
| UIC Standard Rail Fish Plate: UIC864-4 standard, UIC864-8 standard |
We could also arrange production according to customers' required drawing.
10 reasons to choose GNEE rail joints
1. GNEE can provide one-stop services such as development, manufacturing and export services for various types of track joints.
2. It holds more than 80% market share in the field of railway joints in China. We offer non-perforated semi-finished products or perforated finished products.
3. Rail Fishplate holes can be punched or drilled.
4. Available in plain or insulated type.
5. Over 100 types of molds are prepared, including molds for thermite welded joints.
6. More than 50 standard and non-standard fishplate molds are available to buyers worldwide.
7. It is also a fixed long-term supplier of international companies such as A&K, ATT, Vossloh, UT and so on.
8. It is the designated supplier of railway infrastructure construction projects in 23 countries at home and abroad, including China Railway, China Railway Construction, and China Civil Engineering Construction.
9. Products can be customized according to drawings and technical requirements.
10. China Railway Construction is a designated manufacturer of railway components and is qualified to bid for large and medium-sized railway projects.
Product Tags:
|
|

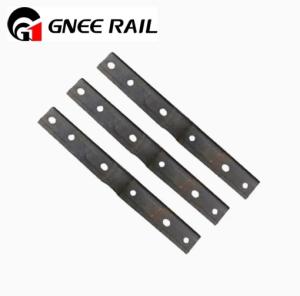

UIC Standard Rail Fish Plate For Railway Construction And Maintenance Images
|
