Customizable Type XII Concrete Railway Sleeper For 1435mm 1067mm 1520mm Gauges

Type XII Concrete Railway Sleeper is a robust and reliable sleeper designed for modern railway systems. It is manufactured from high-strength concrete, it provides excellent load distribution, track stability, and resistance to wear and environmental factors. The Type XII sleeper ensures long-lasting performance with minimal maintenance. It meets international standards and can be customized to suit specific track requirements. We GNEE rail are a reliable railway sleeper supplier offering a diverse selection of wooden and concrete sleepers. Our products are available for 600 mm and 900 mm gauges, with weights ranging from 22 kg to 80 kg. We also provide various fixing options, including bolt-fixed and U-shaped ring fixed sleepers. With a vast range of models and specifications, we are prepared to meet the diverse needs of rail infrastructure projects.

Product name: Type XII Concrete Railway Sleeper

Material: Prestressed concrete and steel bars

Size: Customers' drawings

Standard: UIC, DIN, AREA, BS, GOST, JIS

Rail type: 8kg/m, 12kg/m, 15kg/m, 18kg/m, 22kg/m, 24kg/m, 30kg/m, 38kg/m, 43kg/m, 50kg/m, 60kg/m etc

Rail gauge: 1435mm,1067mm,1520mm

Sleeper Accessories: bolts, screws, bushings,clamps, rubber plates and etc

Axle Load: Max 25t

Static Load Cracking Strength Test Load:

Track base section: Pcr = 170 kN

Intermediate section: Pcr = 116 kN

Fatigue Strength Test Maximum Load:

Track base section: Pcr = 180 kN

Intermediate section: Pcr = 135 kN

Failure Strength Test Load:

Track base section: Pu > 230 kN

Intermediate section: Pu > 190 kN

1435mm Concrete Railway Sleeper

1520mm Concrete Railway Sleeper

1067mm Concrete Railway Sleeper

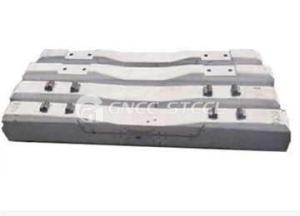

Customizable Type XII Concrete Railway Sleeper For 1435mm 1067mm 1520mm Gauges Images
