Railway Track Concrete Sleeper
Railway Track Concrete Sleeper, also known as Concrete Railway Ties, are vital components in the construction and maintenance of railway tracks. They are designed to support the rails and maintain their alignment while distributing the weight of trains evenly across the ballast. The primary function of concrete sleepers is to provide stability and reduce the maintenance needs of the track system. They are highly durable, resistant to environmental wear, and capable of withstanding heavy loads and high-speed rail operations.
GNEE Rail is a professional and experienced exporter of railway fasteners with over a decade of expertise in international trade. We offer a wide range of specialized products, including rail clips, concrete railway sleepers, composite sleepers, wooden sleepers, rail fish plates, and more. Our products have been successfully exported to over 60 countries worldwide. At GNEE Rail, we understand the critical importance of providing high-quality and reliable railway equipment that meets the needs of our clients, whether they are involved in the construction, maintenance, or upgrading of railway systems. We are committed to delivering products that ensure the safety, efficiency, and longevity of railway infrastructure.
Railway Track Concrete Sleeper specification
Product name: Concrete Railroad Sleeper
Material: Prestressed concrete and steel bars
Size: Customers' drawings
Standard: UIC, DIN, AREA, BS, GOST, JIS
Rail type: 8kg/m, 12kg/m, 15kg/m, 18kg/m, 22kg/m, 24kg/m, 30kg/m, 38kg/m, 43kg/m, 50kg/m, 60kg/m etc
Rail gauge: 1435mm,1067mm,1520mm
Sleeper Accessories: bolts, screws, bushings,clamps, rubber plates and etc
Axle Load: Max 25t
Railway Track Concrete Sleeper technical parameters
| 1.Normal sleepers |
Width 220mm; thickness 160mm; length 2500mm; |
| 2.Turnout sleepers (Normal) |
Width 220mm; thickness 160mm; length 2600 ~ 4850mm, with 150mm carry a total of 16 lengths; |
| 3.Turnout sleepers (Standard) |
Width 240mm; thickness 160mm; length 2600 ~ 4800mm, with 200mm carry a total of 12 lengths; |
| 4.Bridge sleepers |
Width 220mm; thickness 240,260,280,300 mm; length 3000mm. |
Railway Track Concrete Sleeper for Sale
Product Tags:
|
|

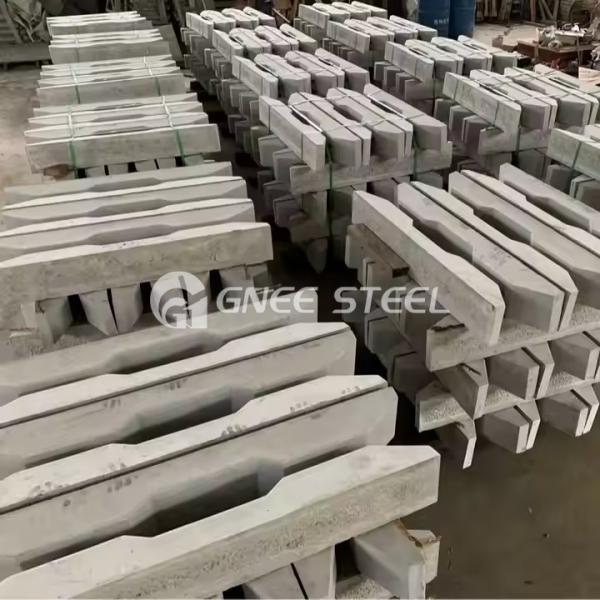

Railway Track Concrete Sleeper Ensuring Stability And Safety Of Railway Tracks Images
|
