20MnMoNi4-5 Steel Plate 20MnMoNi4-5 Hot Rolled Steel Sheet 20MnMoNi4-5 Hot Rolled Steel Plates

Name: 20MnMoNi45 Steel Plate 20MnMoNi45 Hot Rolled Steel Sheet 20MnMoNi45 Hot Rolled Steel Plates
Brand: Gnee
Price: 680 USD

Wholesale 20MnMoNi4-5 Steel Plate 20MnMoNi4-5 Hot Rolled Steel Sheet 20MnMoNi4-5 Hot Rolled Steel Plates from china suppliers

Brand Name : Gnee

Model Number : According to customer requirements

Certification : SGS

Place of Origin : Tianjin, China

MOQ : 1 Ton/Tons

Price : $680 / Ton

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 800 Ton/Tons per Week

Packaging Details : Properly packed for ocean freight exportation in containers 1. Bundle 2. Water-proof Draft Paper

Standard : ASTM, bs, DIN, GB, JIS

Grade : 20MnMoNi4-5

Type : Steel plate/sheet/coil, Steel Plate

Technique : Cold rolled/Hot rolled

Surface Treatment : Coated

Application : Mechanical equipment, industry, metallurgy

Special Use : carbon steel plate, High-strength steel plate

Width : According to requirements

Length : According to requirements

Tolerance : ±1%, Thickness+/-0.01mm

Product Name : carbon steel sheet

Contact Now

20MnMoNi4-5 Steel Plate 20MnMoNi4-5 Hot Rolled Steel Sheet 20MnMoNi4-5 Hot Rolled Steel Plates

Description	Alloy Steel Plate
Related Material	20MnMoNi4-5
Specifications	Thickness:5mm-120mm
	width :1-4 meters .
	Length:1-12 meters .
Price Term	EX-Work, FOB, CFR, CIF

20MnMoNi4-5 steel gradeis one of grade in En10028-2, which is non alloy and alloy steelswith specified elevated temperature properties. In accordance with en10020, 20MnMoNi4-5 steel grade is alloy special steels. 20MnMoNi4-5 Gradedelivery condition is normalized and tempered or quenched and tempered.

20MnMoNi4-5 Chemical Composition Max (%)

Grade	C	Si	Mn	P	S	Al(min)	N
20MnMoNi4-5	0.15-0.23	0.40	1.0-1.50	0.020	0.010		0.012
	Cr	Cu	Mo	Nb	Ni	Ti	V
	0.20	0.20	0.45-0.60		0.4-0.80		0.02

20MnMoNi4-5 Mechanical Property

Grade
Grade	Thickness	Yield	Tensilmie	Elongation	Impact Energy(KV J) min
20MnMoNi4-5	mm	Min Mpa	Mpa	Min %	-20°	0°	+20°
	≤ 40	470	590-750	18	27	40	50
	40> to ≤60	460	590-730	18	27	40	50
	60> to ≤100	450	570-710	18	27	40	50
	100> to ≤150	440	570-710	18	27	40	50
	150> to ≤250	400	570-710	18	27	40	50

20MnMoNi4-5 Steel Plate 20MnMoNi4-5 Hot Rolled Steel Sheet 20MnMoNi4-5 Hot Rolled Steel Plates

STANDARD

GB/T 3522,GB/T 3524,GB/T 13237,GB/T 16270,GB712,GB713,

YB/T 055,GB6653,GB/T 11251,GB713,GB3531,GB6654,GB19189,

A202A/A202M,A203/A203M,A204/A204M,A225/A225M,A285/A285M,

A299/A299M,A302/A302M,A353/A353M,A387/A387M,A455/A455M,

A662/A662M,A724/A724M,A734/A734M,A735/A735M,A736/A736M,

A737/A737M,A738/A738M,A515/A515M,A516/A516M,A517/A517M,

A533/A533M,A537/A537M,A542/A542M,A543/A543M,A553/A553M,

A562/A562M,A612/A612M,A645/A645M,A662/A662M,A738/A738M,

A782/A782M,A832/A832M,A841/A841M,A844/A844M,JIS G3118,

JIS G3115,JIS G3103,JIS G3116,JIS G3126,JIS G3124,JIS G3127,

JIS G4109,JIS G4110,JIS G3119,JIS G3120,JIS G3101,JIS G3106,

JIS G3114,JIS G3125,,DINEN 10120,DIN17460,DINEN 10028,

EN10025-2-2004,EN10028-2-2003,etc

MATERIAL

15,20,25,30,35,40,45,50,55,60,65,70,Q195,Q215,Q235,Q255,Q275,Q295,

Q345,08F,10F,15F,08,08Al,10,Q420,Q460,Q500,Q550,Q620,Q690,A32,

D32,E32,F32,A36,D36,E36,F36,A40,D40,E40,F40,20G,22MnG,LT,XT1,

XT2,HP245,HP265,HP295,HP325,HP345,HP365,45Mn2,27SiMn,40B,

45B,50B,15Cr,20Cr,15CrMoG,16MnG,19MnG,13MnNiCrMoNbG,

12Cr1MoVG,16MnDR,15MnNiDR,09MnNiDR,20R,16MnR,15MnNbR,

15MnVR,15MnVNR,18MnMoNbR,13MnNiMoNbR,15CrMoR,

07MnCrMoVR,07MnNiMoVDR,12MnNiVR,etc

ASTM

ASTM A414/A414M A/B/C/D/E/F/G,ASTM A515/A515M 415/450/485,

ASTM A516/A516M 380/415/450/485,ASTM A204/A204M A/B/C,

ASTM A537/A537M 1/2/3,ASTM A202/A202M A/B

ASTM A203/A203M A/B/D/E/F,ASTM A225/A225M C/D,

ASTM A737/A737M B/CASTM A353/A353M,

ASTM A387/A387M 2/12/11/12/22L/21/21L/5/17/9/91,

ASTM A517/A517M A/B/C/E/F/H/J/M/P/Q/S/T,

ASTM A533/A533M A/B/C/D,

ASTM A542/A542M A/B/C/D/E,ASTM A543/A543M B/C,

ASTM A782/A782M,ASTM A844/A844M,etc

JIS

SGV410,SGV450,SGV480,SPV235/315/355/410/450/490,SB410/450/480,

SG255,SG295,SG325,SG365,SLA235A/235B/325A/325B/365/410,

SB450M/480M,SQV3A/3B,SEV245/295/345,SL2N255,SL3N255/275/440,

SL5N590,SL9N520/590,SCMV1/2/3/4/5/6,SCMQ4E/4V/5V,

SBV1A/1B/2/3,SQV1A/1B/2A/2B,SS330,SS400,SS490,SS540,

SM400A/400B/400C/490A/490B/490C/490YA/490YB/520B/520C/570,

SMA400AW/400AP/400BW/400BP/400CW/400CP/490AW/490AP/490B

W/490BP/490CW/490CP/570W/570P,SPA-H,SPA-C,etc

DIN

P245NB,P265NB,P310NB,P355NB,X6CrNi1811,X3CrNiN1811,

X8CrNiTi1810,X6CrNiMo1713,X3CrNiMoN1713,X8CrNiNb1613,

X8CrNiMoNb1616,X8CrNiMoVNb1613,X5NiCrAlTi3120,

X8NiCrAlTi3221,X5NiCrAlTi3120RK,P235GH,P265GH,P295GH,

P355GH,16Mo3,13CrMo4-5,10CrMo9-10,11CrMo9-10,etc

S185(1.0035),S235J0(1.0114),S235JR(1.0038),S235J2(1.0117),

S275JR(1.0044),S275J0(1.0143),E295,S355J0(1.0553),E335(1.0060),

S235J2W(1.8961),S355J2W(1.8965),P235GH,P265GH,P295GH,P355GH,

16Mo3,13CrMo4-5(1.7335),10CrMo9-10,12Ni14,X12Ni5,X8Ni9,etc

Gnee has large stocks for the carbon steel and low alloy steel plates and sheets, especially have the thick plate and heavy plates on stock, also can provide the special material and large size steel plates, boiler and pressure vessel steel plate, marine steel plate, hot rolled steel plate for new production.

Our Advantages
1. We are a specialized manufacturer. Competitive price and quality from our own factory .
2. Best service with 24 hour`s reply .
3. Flexible payment with T/T,L/C , etc .
4. Smooth production ability(1000tons/month).
5. Quick delivery and standard exporting package .

FAQ

Q: Can you provide EN10204 3.2 MTC?

A: Yes.

Q: Can we get sample?Any charges?

A: Yes,you can get available samples in our stock. Free for real samples, but customers need to pay the freight cost.

Q: How can we get the offer?

A: Pease submit the required steel grade, size, quantity. And we will check price for you at the first time.

Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, etc

Q. What is your sample policy?
A: We can supply free samples if we have ready parts in stock, but the courier cost are charged.

Q: Are you trading company or manufacturer ?

A: We are factory, have our own trading department.

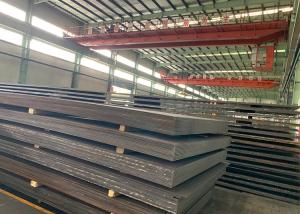

20MnMoNi4-5 Steel Plate 20MnMoNi4-5 Hot Rolled Steel Sheet 20MnMoNi4-5 Hot Rolled Steel Plates Images
